Description

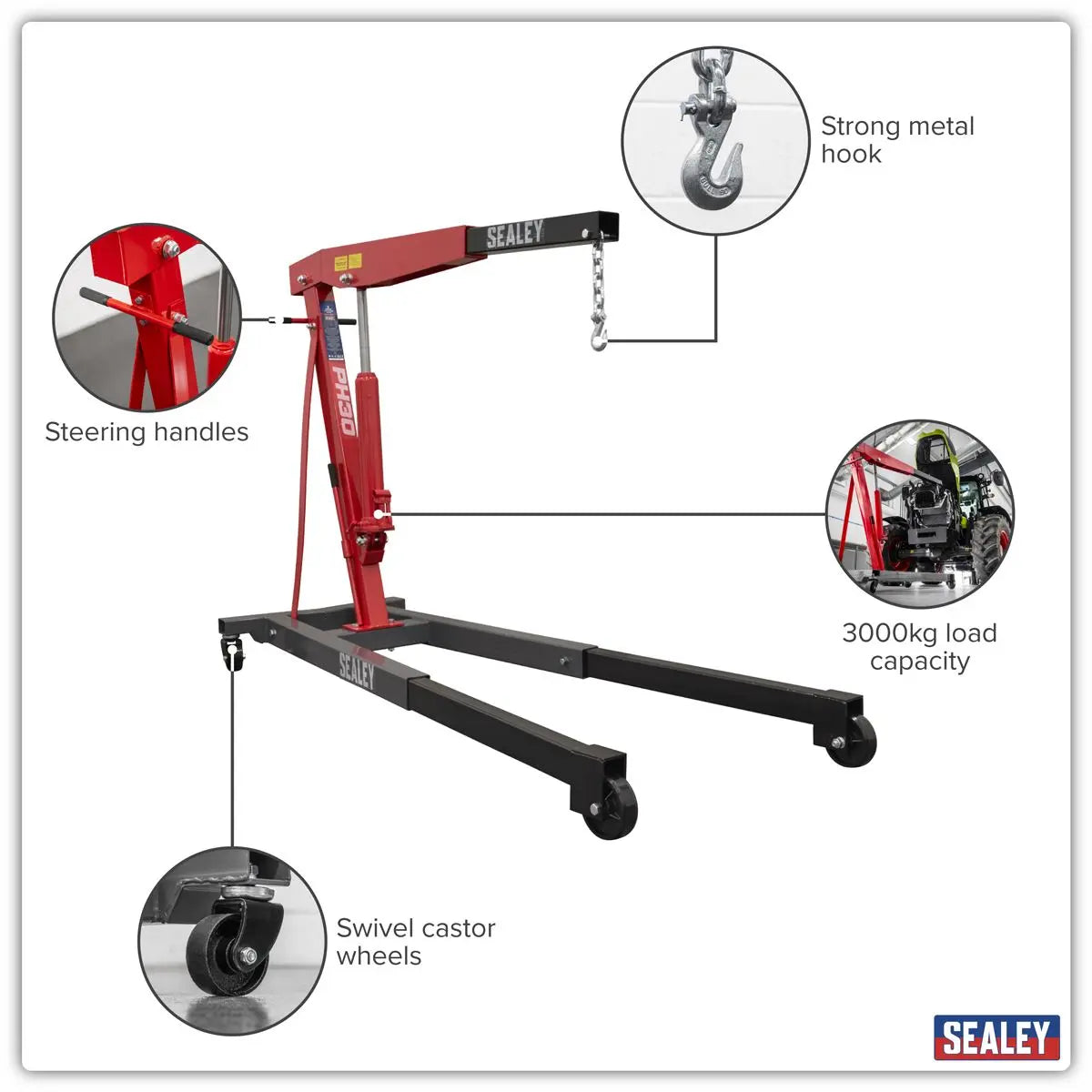

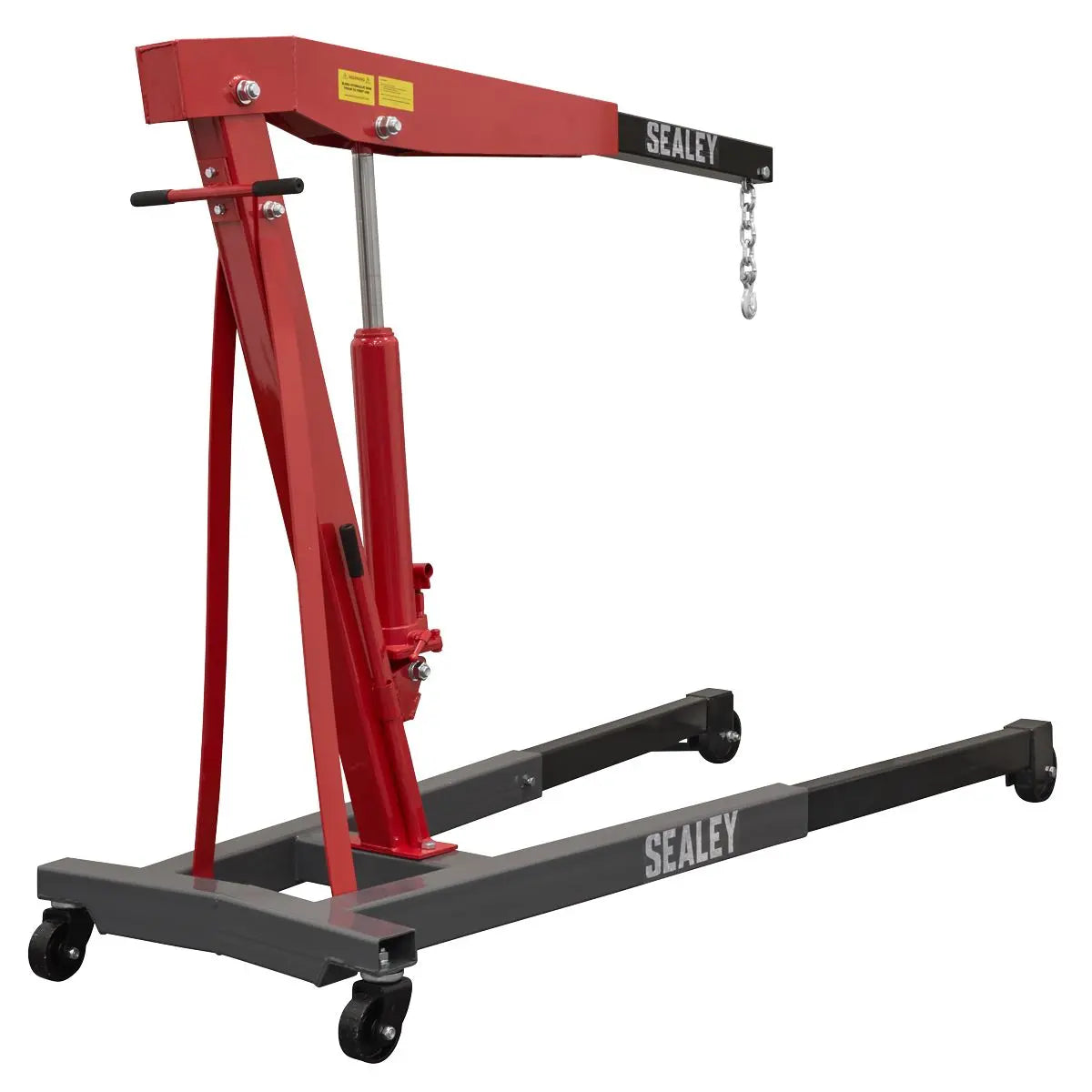

Sealey Fixed Frame Engine Crane with Extendable Legs 3 Tonne

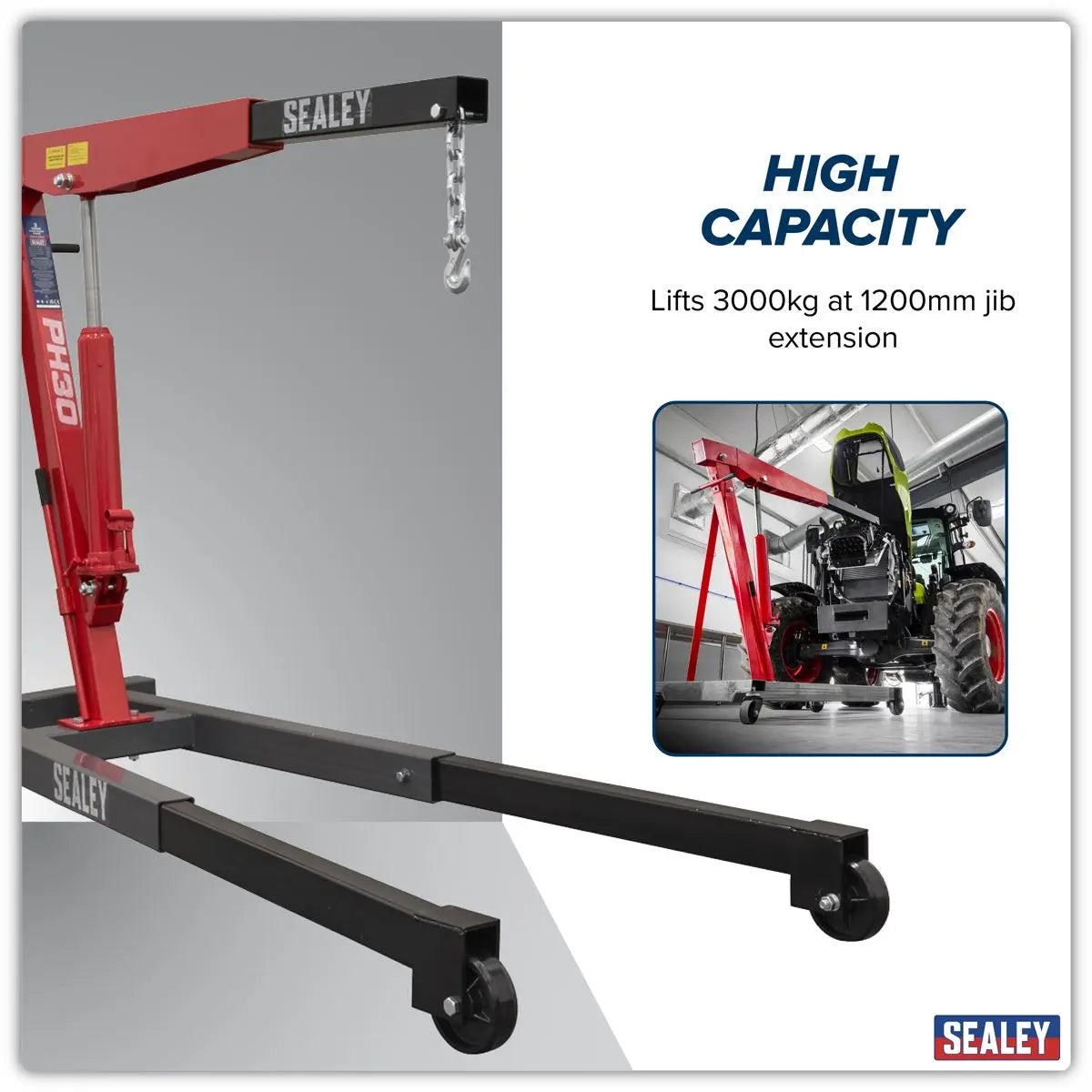

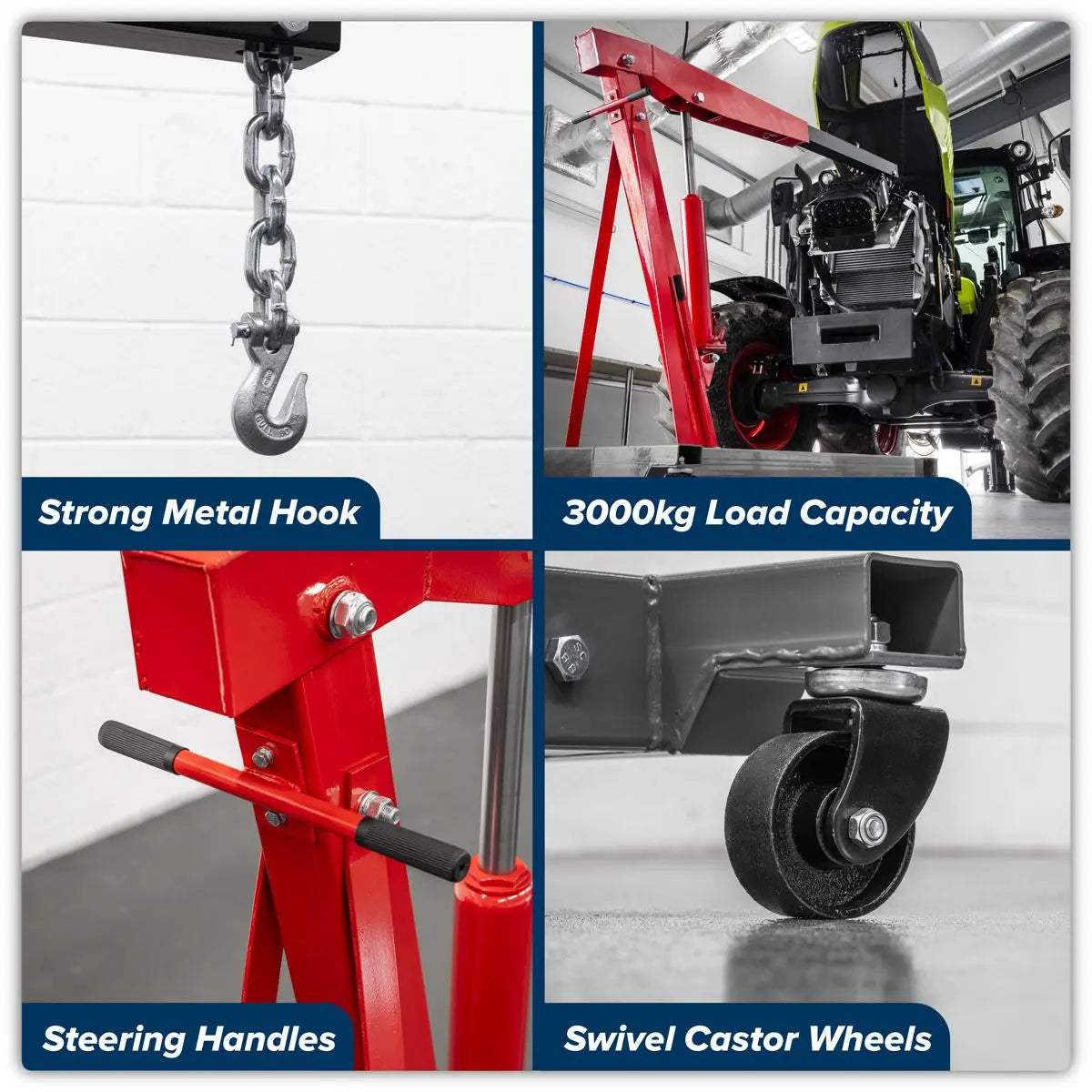

Lifts 3000kg at 1200mm jib extension.

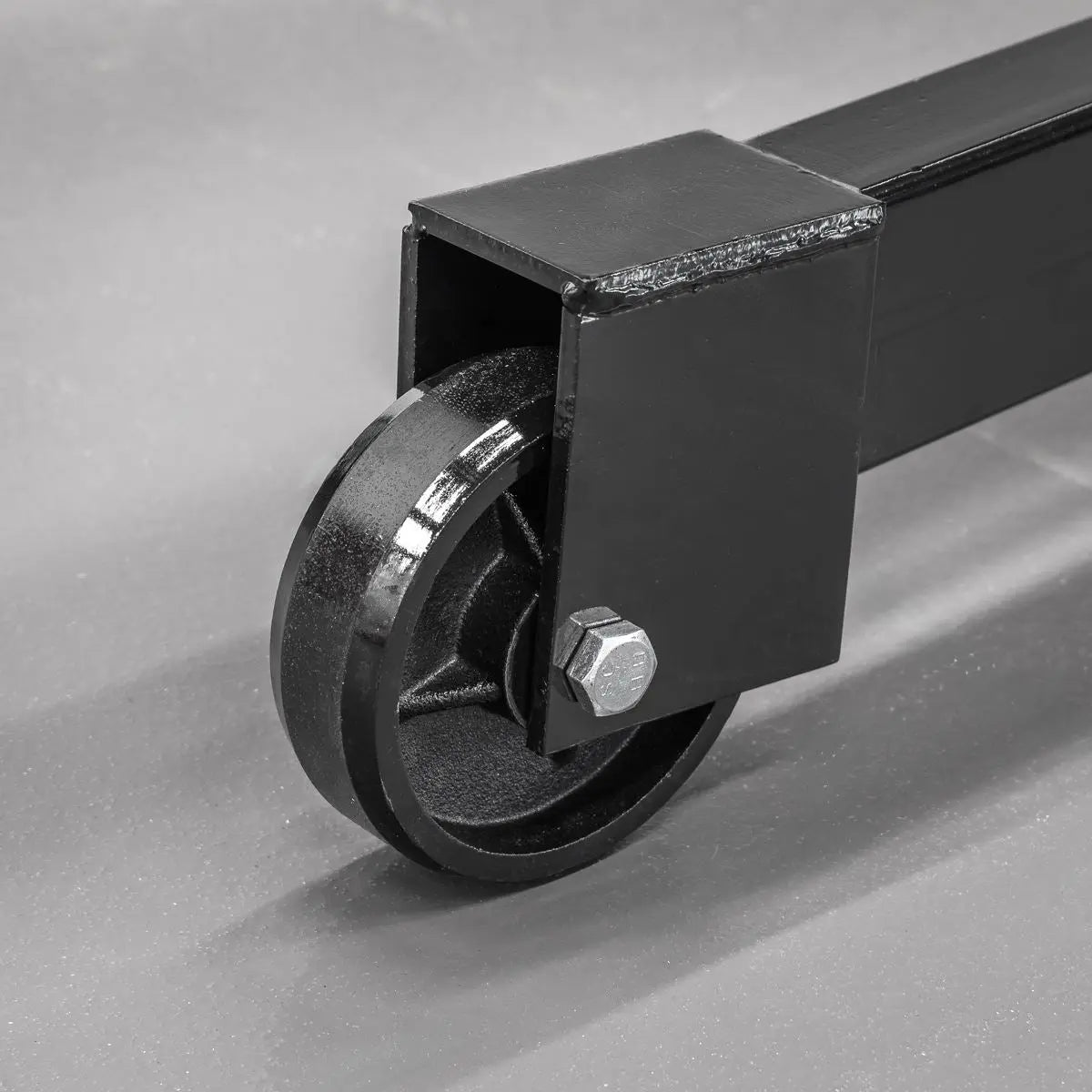

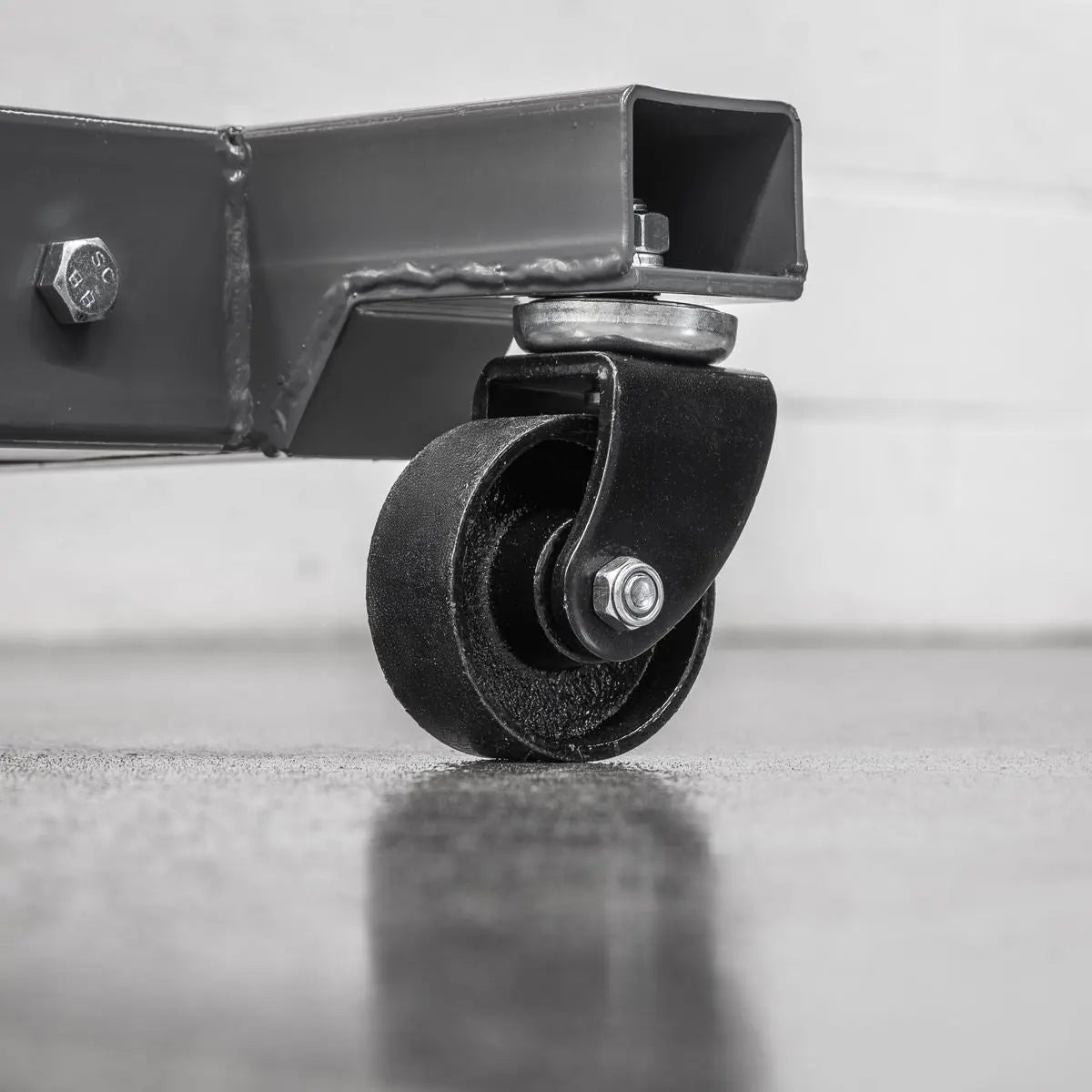

Heavy-duty castors.

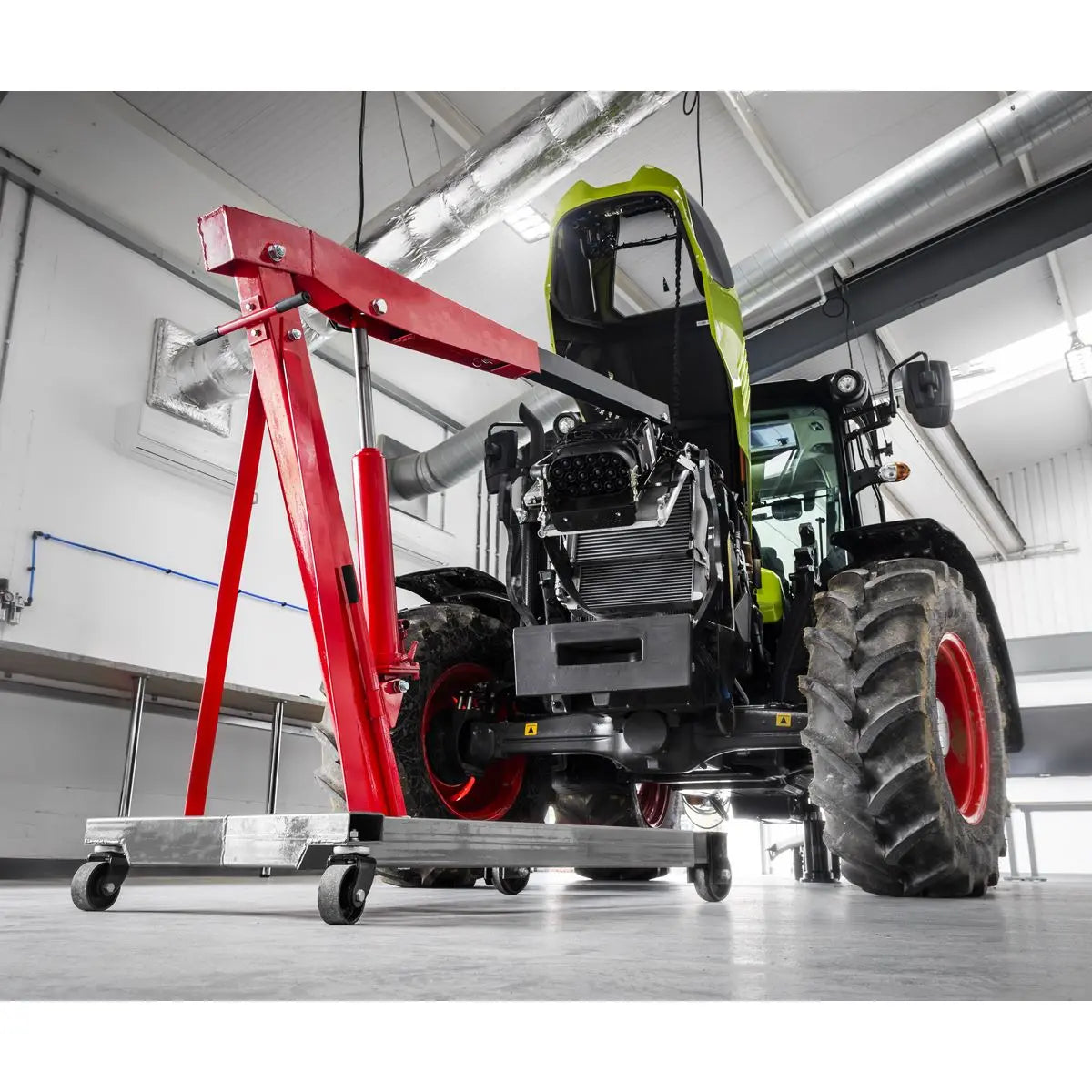

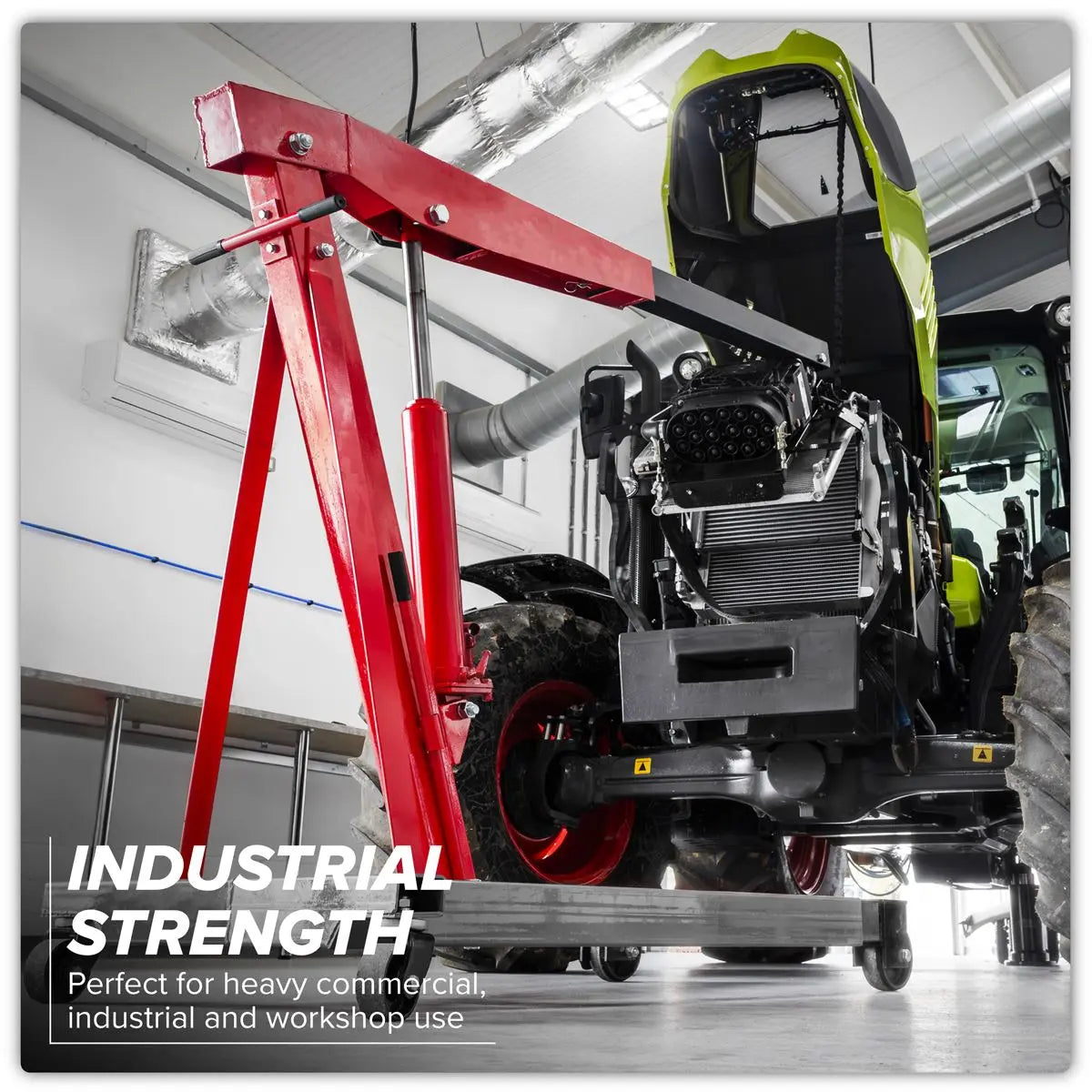

Perfect for heavy commercial, industrial and workshop use.
Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions.

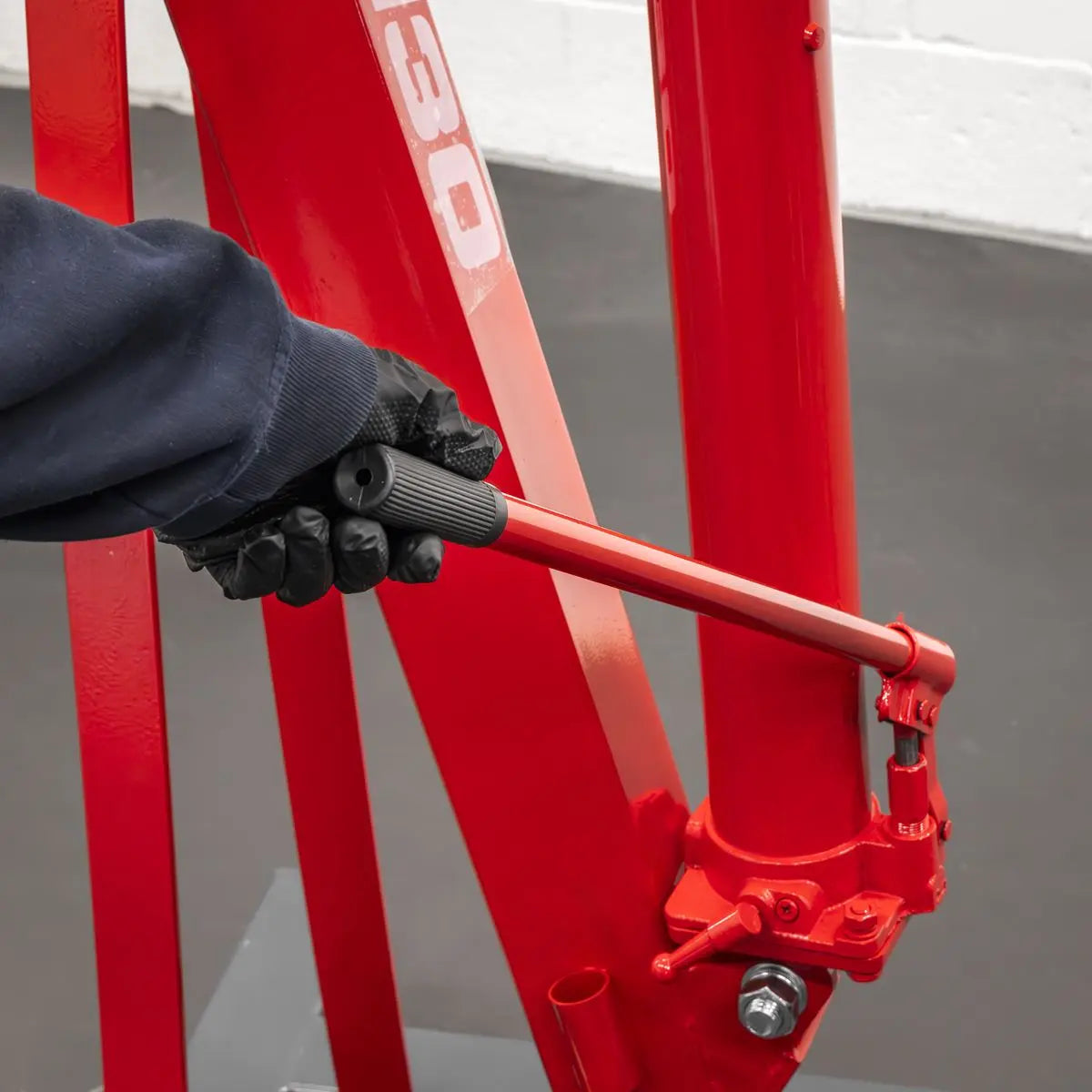

Pump access from side for safe handling of heavy loads.
Delivered in knock-down form for reduced freight cost.
Some self-assembly required.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No PH30
- Brand: Sealey
- Height Jib Down: 1610mm
- Height Legs Folded: n/a
- Height of Frame: 195mm

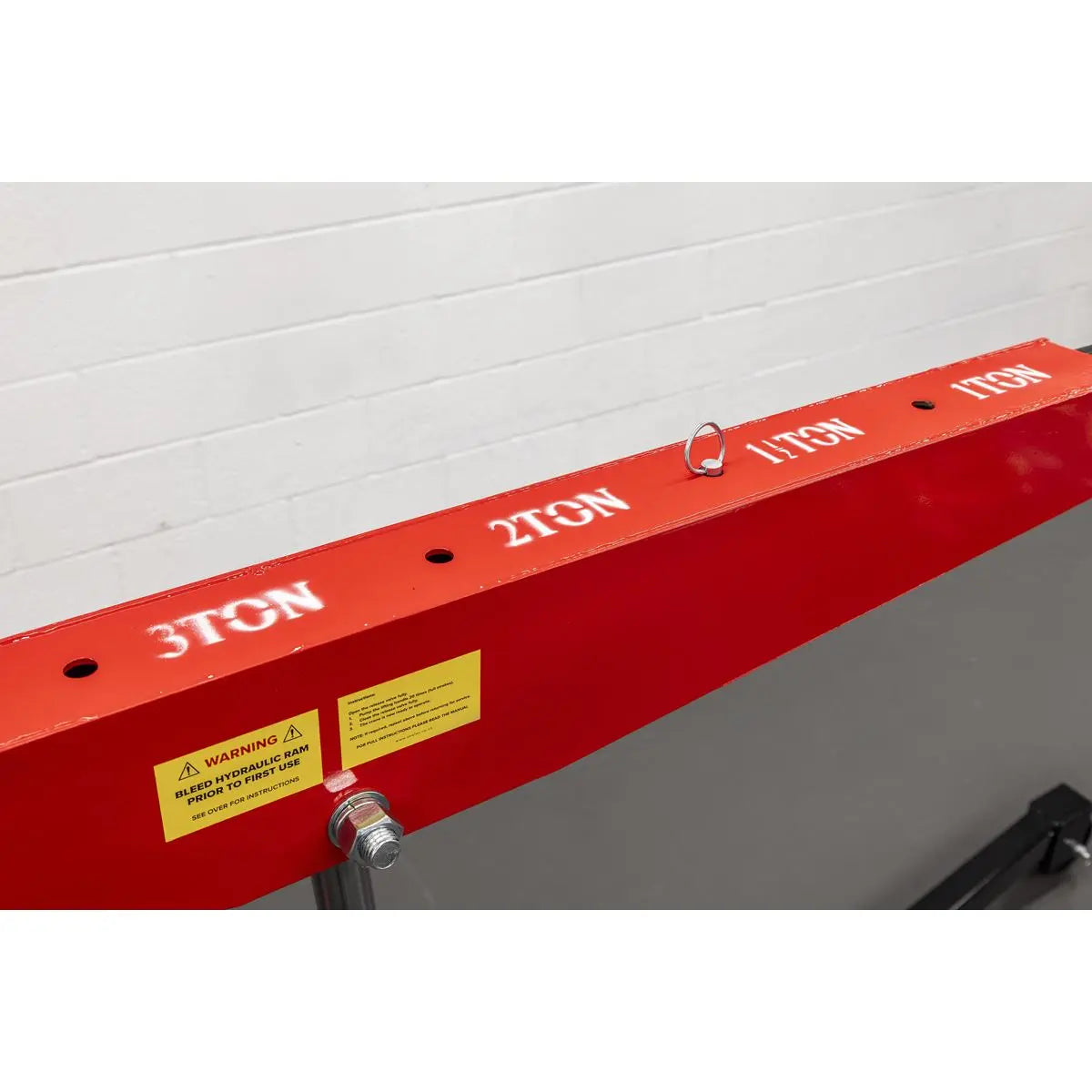

- Length of Jib Position 1: 1200mm
- Length of Jib Position 2: 1400mm
- Length of Jib Position 3: 1610mm
- Length of Jib Position 4: 1820mm
- Length of Jib Position 5: n/a
- Lifting Capacity in Position 1: 3000kg
- Lifting Capacity in Position 2: 2000kg
- Lifting Capacity in Position 3: 1500kg
- Lifting Capacity in Position 4: 1000kg
- Lifting Capacity in Position 5: n/a
- Max. Lift Ht at Jib Position 1: 1880mm
- Max. Lift Ht at Jib Position 2: 1970mm
- Max. Lift Ht at Jib Position 3: 2010mm
- Max. Lift Ht at Jib Position 4: 2220mm
- Max. Lift Ht at Jib Position 5: n/a
- Nett Weight: 155kg
- Note: *Legs Extended
- Rear Width: 780mm
- Width Front Frame: 855mm*
- Width Inside Front Frame: 700mm*
- Width Front Frame: 855mm*
- Width Inside Front Frame: 700mm*
Catalogue Page: Page 318
